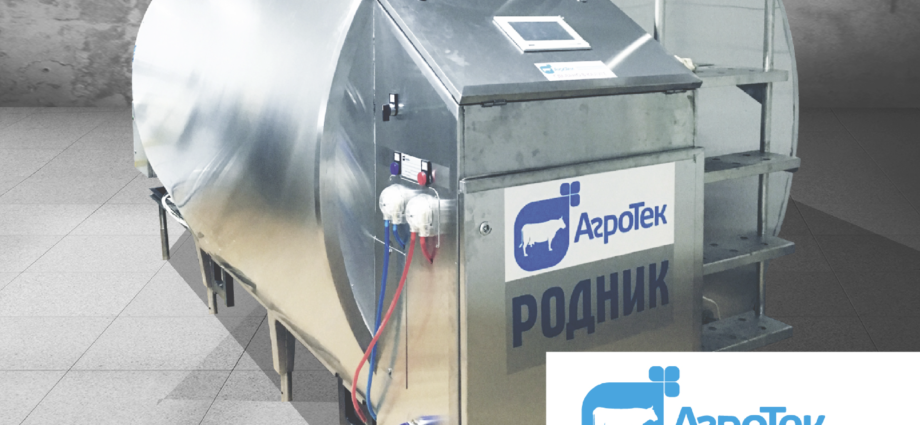

Closed-type milk cooler АТ «Rodnik»: cools milk from its first drops
The unit is intended for cooling milk on livestock farms and at milk plants.
One-piece design: all units are supplied and operated as a monobloc (on one frame).
Easy operation: does not require special skills and staff training.
Cost-efficiency: minimal effort during installation on site.
Speed: when setting up on site, you only need to connect electricity, cold water – and everything works!
Mobility: may be temporarily removed to the field.
Versatility: suitable for all types of robots.
Rapid cooling
3
-year
warranty
-year
warranty
Comparative characteristics of benefits

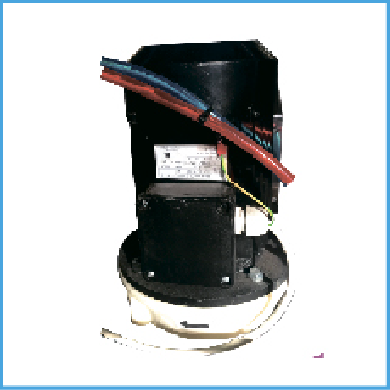

Built-in pump for loading and discharge. Already in the kit and at one base.

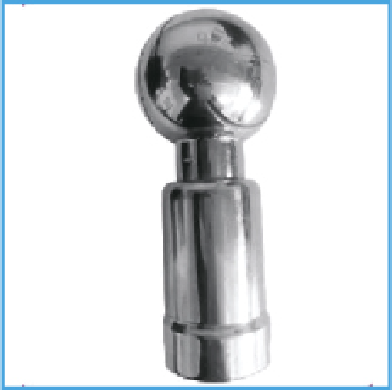

Complete with two rotary washing heads.

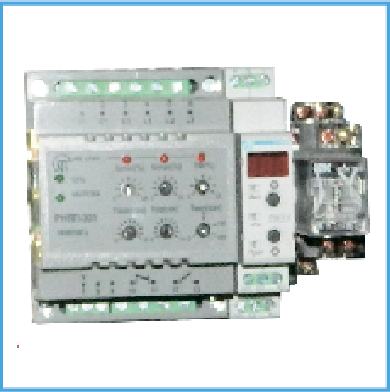

Voltage monitor. Already in the kit and at one base. Protection of expensive electrical equipment from failure.

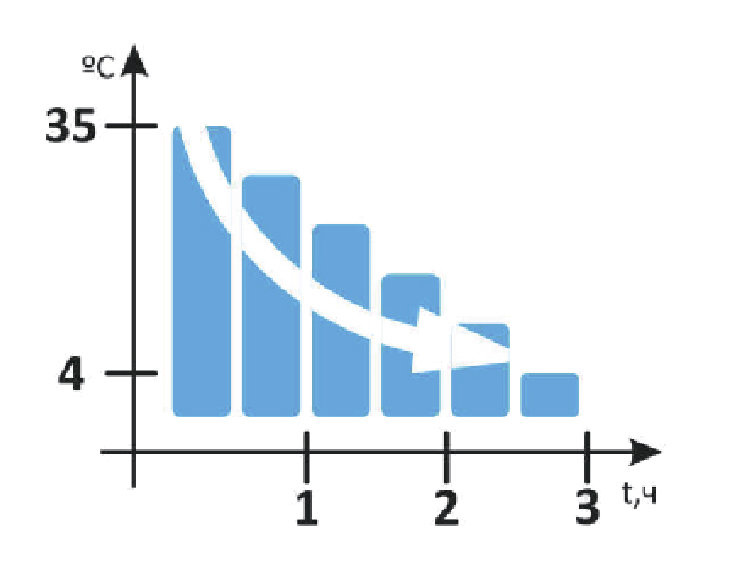

Starts cooling milk from firsts drops
Increased heat transfer area
Higher cooling rate
Reduces cooling time by 20% compared to directly cooled tanks
Replaces pre-cooling function
Two-stage cooling system
Gentle cooling
Wide adjustment range, cooling milk to +2°C. without increasing cooling time

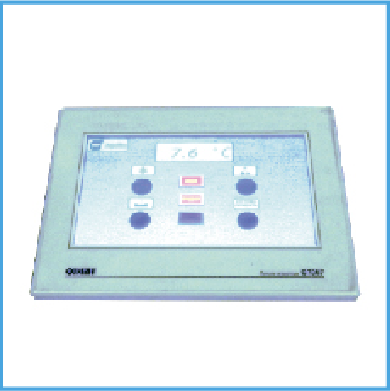

Touch panel. Already in the kit and at one base. Management and visualization of all operating modes.

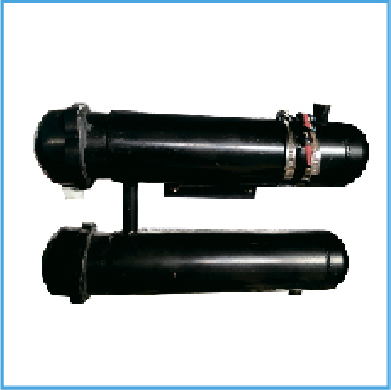

Built-in water heater. Already in the kit and at one base.
On one frame. Already in the kit and at one base. Compact model. The unit supplies cold water and electricity and ensures proper cooling and storage of milk.
Antishock. Already in the kit and at one base. Easy and smooth transfer to the field, works at an ambient temperature from 0 to +45°C
Technical specifications
(basic set)
| VALUE FOR MATERIAL CONTROL | |||||||
|---|---|---|---|---|---|---|---|
| Name, unit of measurement | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Maximum capacity, L | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
| Minimum milk filling for cooling, L | 500 | 600 | 760 | 760 | 910 | 980 | 1100 |
| Stirrer: Rpm / Electric motor power, kW | 18/0,25 | ||||||
| Refrigerant Freon R404A — weight, kg. | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
| Total power consumption (cooling), not more than, kW | 4,9 | 5,6 | 6,8 | 7,2 | 9,8 | 10 | 11 |
| Tank dimensions, mm L/W/H | 2420 / 1600 / 2050 | 3040 / 1600 / 2050 | 3620 / 1600 / 2050 | 3400 / 1800 / 2250 | 3850 / 1800 / 2250 | 4890 / 1800 / 2200 | 25200 / 2200 / 2600 |
| Unit weight, not more than, kg | 520 | 620 | 740 | 860 | 950 | 1250 | 1300 |
