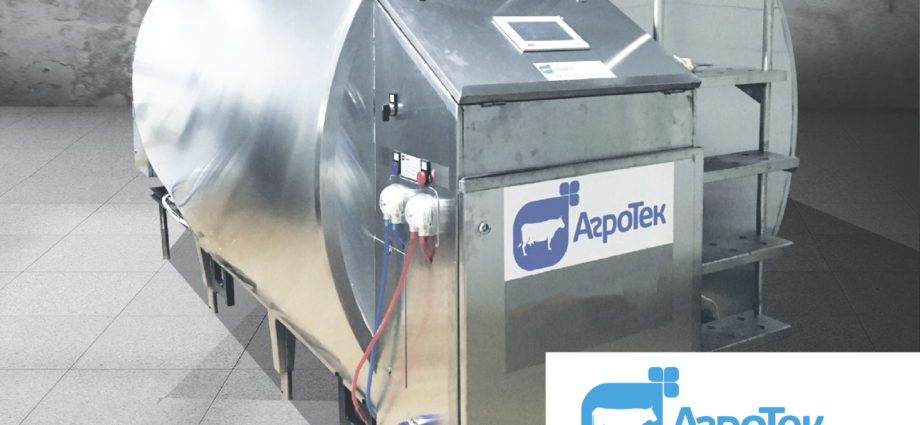

Closed-type milk cooler АТ «Istok»
Economical, practical, mobile
Comparative characteristics of benefits
Built-in water heater. Already in the kit and at one base.
Built-in pump for loading and discharge. Already in the kit and at one base.
Product sensor. Already in the kit and at one base + Automatic function Stop Discharge.
Voltage monitor. Already in the kit and at one base. Protection of expensive electrical equipment from failure.
Complete with two rotary washing heads
Touch panel. Already in the kit and at one base. Management and visualization of all operating modes.
Antishock. Already in the kit and at one base. Easy and smooth transfer to the field, works at an ambient temperature from 0 to +45°C.
On one frame. Already in the kit and at one base. Compact model. The unit supplies cold water and electricity and ensures proper cooling and storage of milk.
AT «Istok» is intended for cooling milk on livestock farms and at milk plants.
- One-piece design: all units are supplied and operated as a monobloc (on one frame)
- Easy operation: does not require special skills and staff training.
- Cost-efficiency: minimal effort during installation on site
- Speed: when setting up on site, you only need to connect electricity, cold water – and everything works!
- Mobility: may be temporarily removed to the field
- Versatility: suitable for all types of robots
Value for material control | |||||||
Name, unit of measurement | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
Maximum capacity, L | 2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 |
Minimum milk filling for cooling, L | 500 | 600 | 760 | 760 | 910 | 980 | 1100 |
Stirrer: | |||||||
rpm | 18 | ||||||
Electric motor power, kW | 0,25 | ||||||
Refrigerant Freon R404A — weight, kg | 6 | 8 | 10 | 12 | 14 | 16 | 18 |
Общая Total power consumption |
4,9 | 5,6 | 6,8 | 7,2 | 9,8 | 10 | 11 |
Tank dimensions, mm: | |||||||
Length | 2420 | 3040 | 3620 | 3400 | 3850 | 4890 | 25200 |
Width | 1600 | 1600 | 1600 | 1800 | 1800 | 1800 | 2200 |
Height | 2050 | 2050 | 2050 | 2250 | 2250 | 2200 | 2600 |
Unit weight, not more than, kg | 520 | 620 | 740 | 860 | 950 | 1250 | 1300 |
