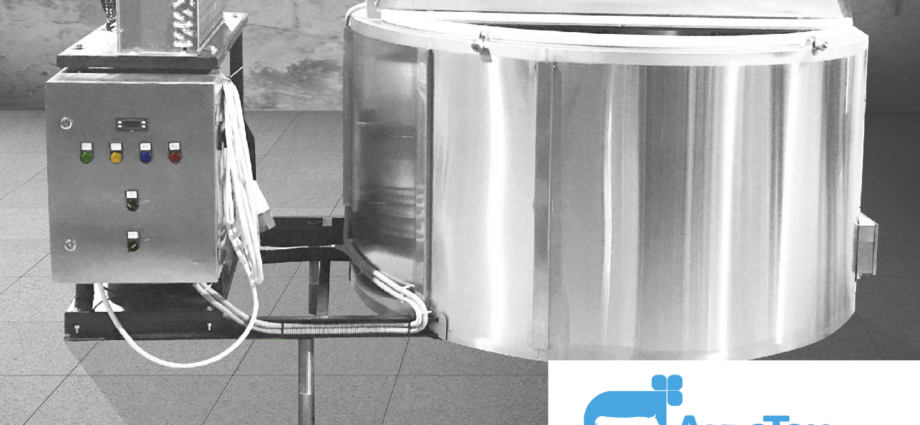

Open-type milk cooler АТ «Istok»
The unit is intended for cooling milk on livestock farms and at milk plants
- One-piece design: all units are supplied and operated as a monobloc (on one frame)
- Easy operation: does not require special skills and staff training.
- Cost-efficiency: minimal effort during installation on site.
- Speed: when setting up on site, you only need to connect electricity, cold water – and everything works!
- Mobility: may be temporarily removed to the field
3 -year warranty
Comparative characteristics of benefits
Voltage monitor. Already in the kit and at one base. Protection of expensive electrical equipment from failure.

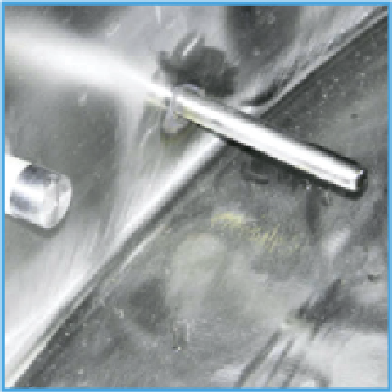

Complete with two rotary washing heads
Product sensor. Already in the kit and at one base. Automatic Stop Discharge function

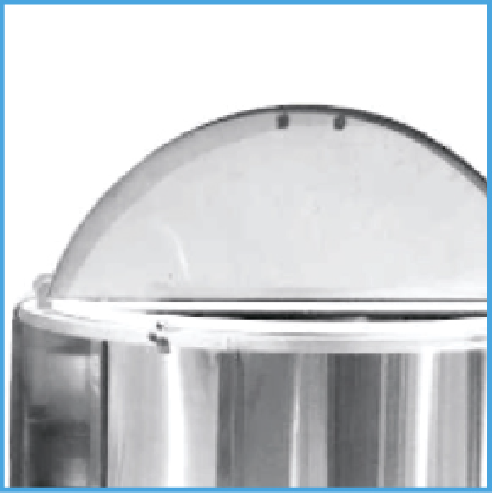

Sealed cover, silicone food gasket.
Antishock. Already in the kit and at one base. Easy and smooth transfer to the field, works at an ambient temperature from 0 to +45°C
Technical specifications
VALUE FOR MATERIAL CONTROL | ||||||||
---|---|---|---|---|---|---|---|---|
Name, unit of measurement | 100 | 300 | 500 | 800 | 1000 | 1500 | 2000 | 2500 |
Maximum capacity, L / Minimum milk filling for cooling, L | 110/30 | 320/50 | 535/50 | 860/150 | 1000/150 | 1550/200 | 2100/250 | 2700/250 |

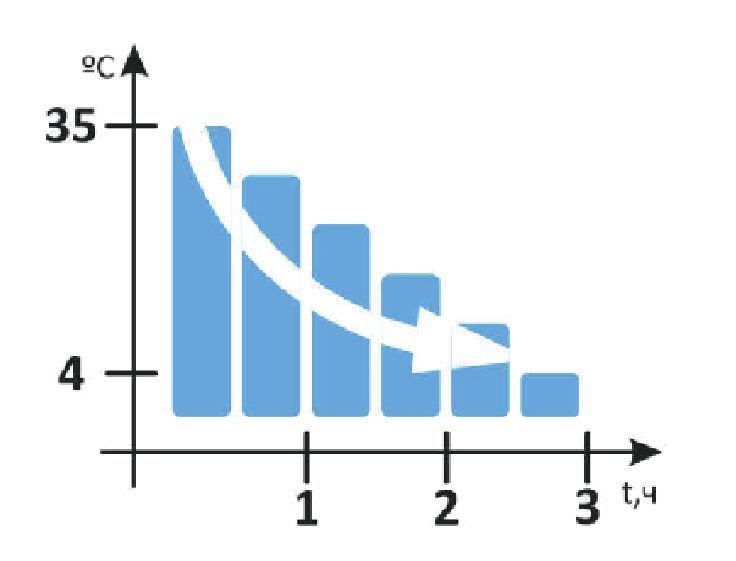

Milk cooling time of milk (hours) at 1/3 of the load, from the initial temperature of 32°C to the final temperature of 4°C, at an ambient temperature of 25°C, hours | 3,0 | |||||||
Refrigerator oil — type, weight, kg. | Indicated on the compressor label | |||||||
Accuracy with which the unit automatically maintains the milk storage temperature, °C | +/-1 | |||||||
Stirrer | 23/0,25/380 | |||||||
Refrigerant Freon R404A — weight, kg. | 2,0 | 2,3 | 3,0 | 3,8 | 5,0 | 5,5 | 6,0 | 6,5 |
Power voltage (50 Hz, 3 phases), V | 380 | |||||||
Total power consumption (cooling), not more than, kW | 2,5 | 3,1 | 3,8 | 4,5 | 4,5 | 5,0 | 5,2 | 5,2 |
Tank dimensions, mm, L/W/H | 1500 / 810 / 900 | 2260 / 1110 / 980 | 2260 / 1100 / 1300 | 2380 / 1540 / 1180 | 2380 / 1540 / 1250 | 2580 / 1770 / 1460 | 2980 / 2000 / 1320 | 2980 / 2110 / 1480 |
Unit weight, not more than, kg | 180 | 240 | 280 | 360 | 390 | 470 | 550 | 600 |
