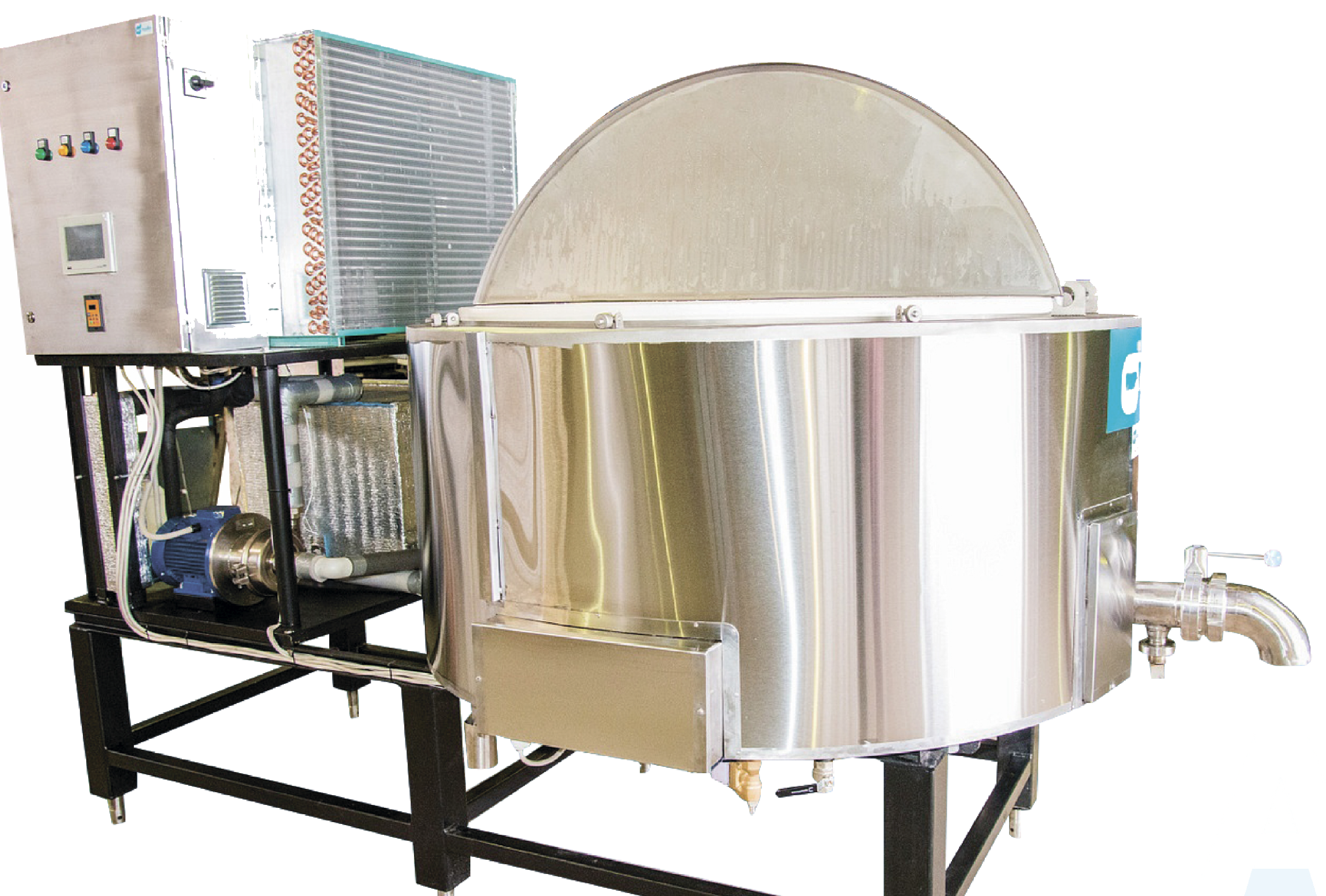

Open-type milk cooler АТ «Rodnik»
The unit is intended for cooling milk on livestock farms and at milk plants.
Mobility:
may be temporarily removed to the field
may be temporarily removed to the field
Easy to operate:
does not require special skills and staff training
does not require special skills and staff training
Cost-efficiency:
minimal effort during installation on site
minimal effort during installation on site
One-piece design:
all units are supplied and operated as a monobloc (on one frame)
all units are supplied and operated as a monobloc (on one frame)
Speed:
when setting up on site, you only need to connect electricity, cold water – and everything works!
when setting up on site, you only need to connect electricity, cold water – and everything works!

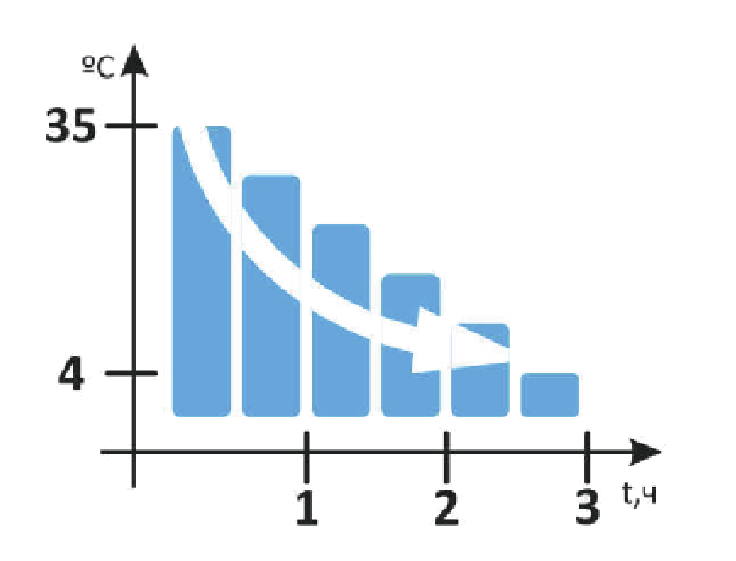

Rapid cooling
3
-year
warranty
Comparative characteristics of benefits
Starts cooling milk from firsts drops
Increases the heat transfer area
Higher cooling rate
Replaces pre-cooling function
Two-stage cooling system
Gentle cooling
Reduces cooling time by 20% compared to directly cooled tanks
Wide adjustment range, cooling milk to +2°C. without increasing cooling time
Voltage monitor
Already included on one base. Protection of expensive electrical equipment from failure.
Sealed cap
silicone food pad.
Complete with
two rotary washing heads
Antishock. Already in the kit and at one base
Easy and smooth transfer to the field, works at an ambient temperature from 0 to +45°C
Technical specifications
Basic set
VALUE FOR MATERIAL CONTROL | ||||||||
---|---|---|---|---|---|---|---|---|
Name, unit of measurement | 500 | 1000 | 1500 | 2000 | 2500 | |||
Minimum milk filling for cooling, L / Maximum capacity, L | 0 / 535 | 0 / 1000 | 0 / 1550 | 0 / 2100 | 0 / 2700 | |||
Milk cooling time of milk (hours) at 1/3 of the load, from the initial temperature of 32°C to the final temperature of 4°C, at an ambient temperature of 25±1°C, hours | 3,0 | |||||||
Refrigerator oil — type, weight, kg. | Indicated on the compressor label | |||||||
Accuracy with which the unit automatically maintains the milk storage temperature, °C | ±1 | |||||||
Stirrer: angular rate, rpm / electric motor power, kW / power voltage, V | 18 / 0,25 / 380 | |||||||
Refrigerant Freon R404A — weight, kg. | 3,0 | 5,0 | 5,5 | 6,0 | 6,5 | |||
Power voltage (50 Hz, 3 phases), V | 380 | |||||||
Total power consumption, not more than, kW | 3,5 | 3,5 | 5,0 | 5,0 | 5,0 | |||
Unit dimensions, mm L/W/H | 2760 / 1100 / 1300 | 2880 / 1540 / 1250 | 3080 / 1770 / 1460 | 3480 / 2000 / 1320 | 3480 / 2110 / 1480 | |||
Unit weight, not more than, kg | 430 | 540 | 620 | 700 | 750 |
